Fermionics Opto-Technology also offers High Speed Optical Converters, Optical Receivers, and Arrays. We have the engineering expertise to solve a variety of application problems. Whether your requirements are for off the shelf detectors, specially configured packages, or custom designed chips, we stand prepared to support your photodiode needs.

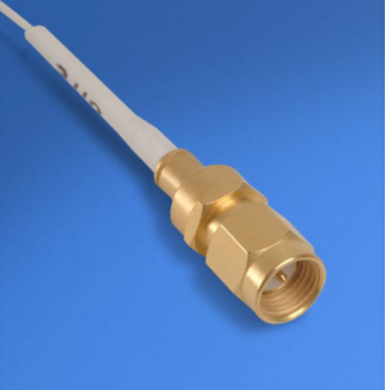

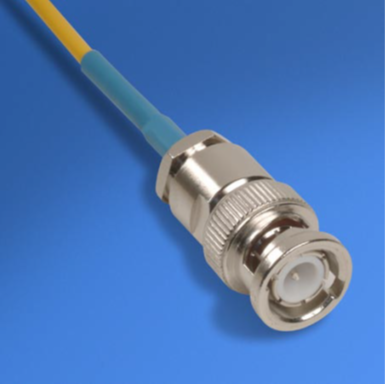

BNOC and SMA-OC optical converters provide a convenient way to observe optical waveforms using any instrument equipped with BNC or SMA inputs. Optical signals can easily be injected into instruments such as oscilloscopes, multimeters, and high bandwidth amplifiers. Simply attach the BNC or SMA electrical connector to the instrument and connect the fiber end to the optical source. The high speed InGaAs photodiode packaged the BNC or SMA connector converts the incoming optical signal directly into an equivalent electrical signal. Using the Optical Converter’s connectorized fiber cable pigtail, it is especially easy to observe optical signals that are remote to the test instrument. The BNC and SMA-OC can be configured with any fiber optic connector at the fiber cable end.
Optical and Electrical Characteristics (T = 25°C)
| Parameter | Test Conditions | Value | Units |
|---|---|---|---|
| Rise/Fall Time | Vr = 5V |
<300 | ps |
| Responsivity | Vr = 5V, λ = 1300 nm | 0.9 | A/W |
| Dark Current | Vr = 5V | 0.1 | nA |
| Capacitance |
Vr = 5V | 1 | pF |
| Bandwidth | Vr = 0V Vr = 5V |
50 600 |
MHz |
Package Options
| Part Number | Part Description | ||
|---|---|---|---|
| BNOC | Optical Converter. FC, SC, ST, SMA optical connectors available. 50/125 multimode fiber is standard (other options available upon request) |
|
|
| SMAOC | Optical Converter. FC, SC, ST, SMA optical connectors available. 50/125 multimode fiber is standard (other options available upon request) |
|
|
The FD50DA, FD80DA, FD140DA series of High Speed Digital Arrays are designed for multichannel fiber applications based on standard 0.25 m pitch fiber ribbon. High speed, high bandwidth InGaAs photodiodes are monolithically integrated in rows of 1xn elements, with center-to-center spacing of 0.25 mm. Anode contacts are located on the chip's top surface, while the bottom surface provides the common cathode. The photosensitive areas are anti-reflection coated. Optical and electrical characteristics of each element are similar to those of discrete photodiodes in the FD50, FD80, or FD150 series. A ceramic fanout mounting block, capable of accommodating up to 16 elements, is available.
The FRL2003DS combines a MAXIM3864E/D preamplifier with a high speed InGaAs photodiode in a compact TO-46 package. The angle-polished single mode fiber pigtail provides a low back-reflection optical input. Designed for operation in the wavelength region 950 nm to 1650 nm.
Optical and Electrical Characteristics (T = 25°C)
| Parameter | Value | Units |
|---|---|---|
| Small Signal Bandwidth | 2000 (typical) | ps |
| Responsivity | 1000 (minimum) | mV/mW |
| Back Reflection | -35 | dBm |
| Vcc |
3 - 5.5 | V |
| Vr | 5 | V |
Package Options
| Part Number | Part Description | ||
|---|---|---|---|
| FRL2003DS | 80 µm active diameter InGaAs photodiode and MAX3864 TIA mounted in 5-pin axial TO46 header. Internal fiber tip polished at 8° for low back reflection. Custom singlemode fiber and connector terminations available |
|
The products on our website describe standard InGaAs photodiode products available from Fermionics Opto-Technology. Whether your requirements are for off the shelf detectors, specially configured packages, or custom designed chips, we stand prepared to support your photodetector needs.
Fermionics Opto-Technology has the engineering expertise and resources to solve a variety of application problems including:
Custom chip fabrication
Custom detector arrays
Special characterization and testing
Custom package configurations: ceramic submounts, headers, fiber-coupled assemblies, TE-cooled, BNC, SMA
We hope that this website is a valuable source of information for your InGaAs photodiode requirements. If the photodiode you need is not listed among our standard products, please give us a call at (805) 582 0155 or email our customer support @ InGaAs@fermionics.com and let us put our knowledge and experience to work for you.
